Profile LED P24-3
Waterproof aluminum LED profile IP67 for mounting LED strips in challenging conditions. Available in multiple colors and lengths. Ideal for outdoor applications and humid environments.
Description
LED Profile P24-3 is a waterproof solution with IP67 protection rating, designed for mounting LED strips up to 11.8 mm width. Made from high-quality aluminum, available in multiple color versions. Profile dimensions are 26 mm width and 20.3 mm height, offered in standard lengths and custom sizes.

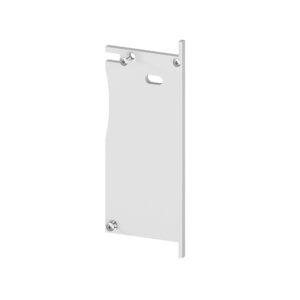

The profile is compatible with dedicated covers and end caps, ensuring complete installation sealing. Recommended for SMD LED strips IP67. Installation possible using adhesive or silicone.
Applications:
– Exterior building lighting
– High humidity areas
– Bathrooms and SPA zones
– Garden and terrace lighting
– Installations exposed to weather conditions
Tolerances
Length tolerance according to ISO 2768-9.
Products (profiles and covers) made with positive tolerance.
Additional information
| Dimensions | 26 × 20.3 mm |
|---|---|
| Marteriał | |
| IP | |
| Typ profilu | |
| Kolor | Anthracite grey, Painted in black, Painted in white, Silver anodised |
| Długości | |
| Szerokość LED | |
| Ilość LED | |
| Osłonki | |
| Sposób montażu | glue, silicone |
