Profil LED P24-3

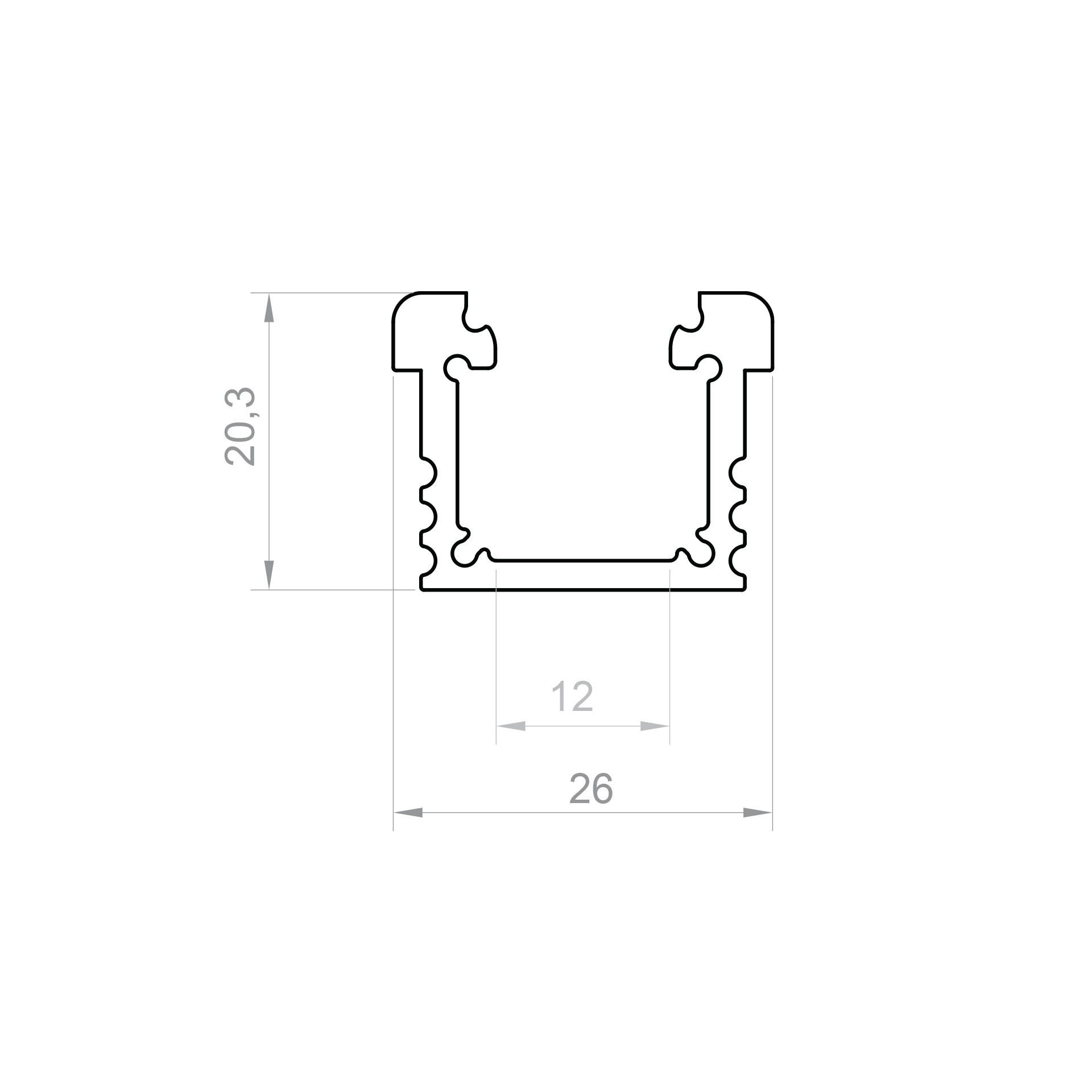

LED Profile P24-3 is a waterproof solution with IP67 protection rating, designed for mounting LED strips up to 11.8 mm wide. Made from high-quality aluminum, available in various color options. Profile dimensions are 26 mm width and 20.3 mm height, offered in standard lengths and custom sizes.

The profile is compatible with dedicated covers and end caps, ensuring complete installation sealing. Recommended for SMD LED strips IP67. Installation possible using adhesive or silicone.

Applications:

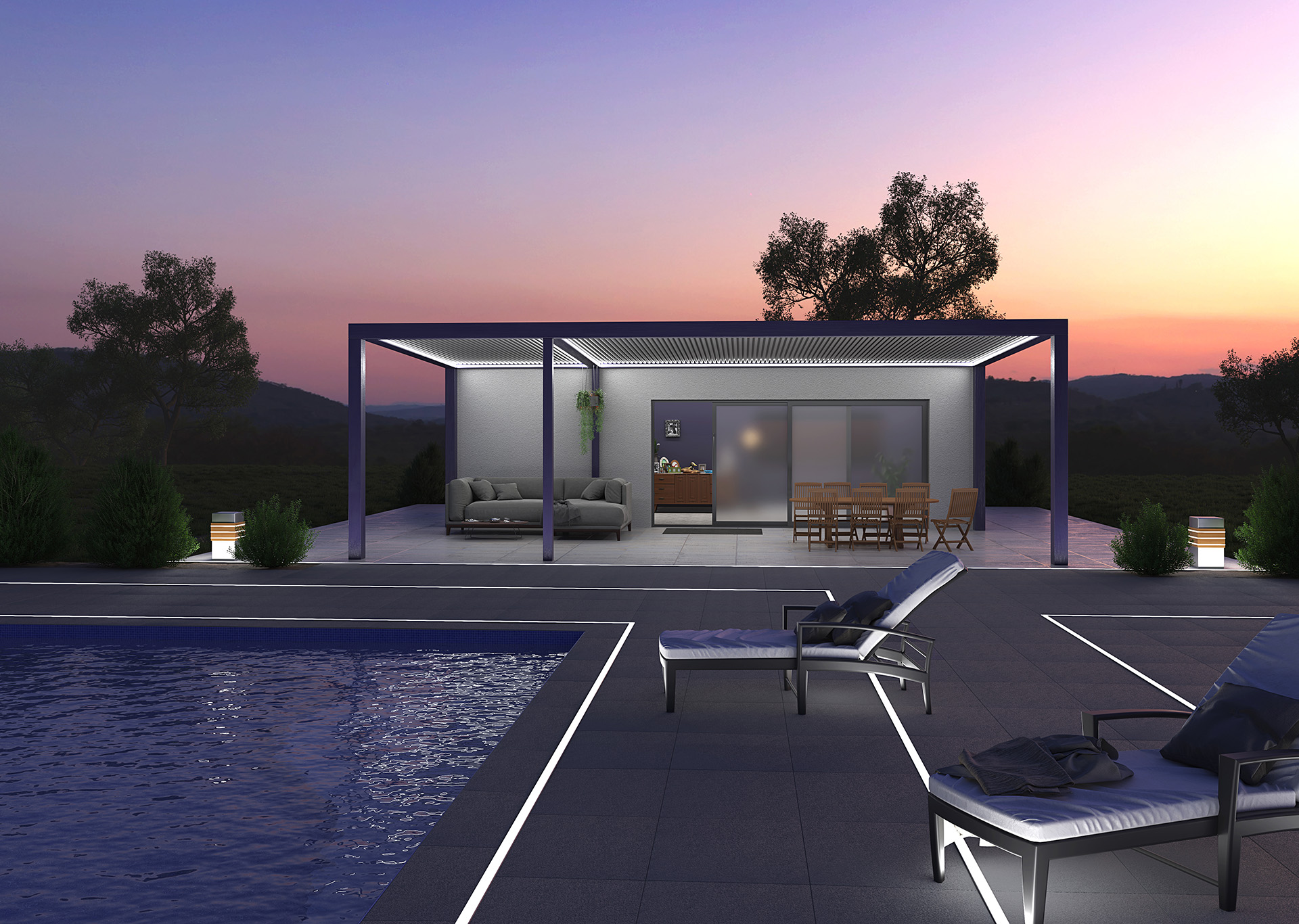

– External building lighting
– High humidity rooms
– Bathrooms and SPA areas
– Garden and terrace lighting
– Installations exposed to weather conditions

Durability and Functionality
Although lighting profiles are not tested as main structural elements, we inform that thanks to the solid aluminum construction and proper installation (e.g., in paving stones), the P24-3 profile can withstand static loads up to 3.5 tons.

Important Installation Notes
Profile Role: The profile serves as a protective cover for the LED strip and heat dissipation element, not as the main load-bearing element.

Key Installation: To ensure the declared strength, proper embedding of the profile in the substrate (e.g., paving stones or tiles) according to construction standards is crucial. The substrate structure (laying method and stabilization of stones/tiles) takes over and distributes most dynamic and static loads.

Test Conditions: The stated value of 3.5 tons refers to static load and does not include dynamic impact forces such as sudden braking or very fast driving.

In summary, the P24-3 Profile will provide reliable and sealed lighting (IP67) in the substrate, and its construction allows safe use in spaces where passenger vehicle pressure may occur.

Tolerancja
Tolerancja długości zgodna z normą ISO 2768-9.
Produkty (profile i osłonki) wykonywane w tolerancji dodatniej.
